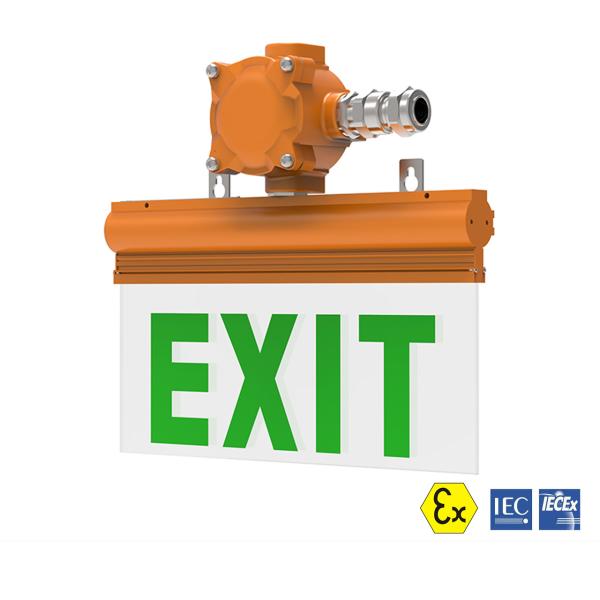

100-277VAC 6W Explosion Proof Led Exit Sign Copper Free Aluminium Enclosure

Polaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium

Features And Benefits:
1. Robust light alloy housing.
2. Power saving LED technology.
3. Overcharge and over discharge protection make sure good performance.
4. Luminaire with self-contained battery unit and automatic function monitoring.
5. Nickel-cadmium battery,500 cycles life span.

Specifications:

Standard &Certificate:
Ex Mark:Gas: II 2 G Ex mb ib op is IIC T6 Gb
II 2 D Ex tb op is IIIC T95℃ or T80℃ Db

Certificate:

Executive Standard:

Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC
141-392 VDC
Power:Normal:6W;Emergency:0.5W
Battery Rated Capacity:2.6Ah
Rated Capacity:Ni-MH
Rated Lifespan:300 Cycles
Battery Back Up:18 h
Battery Charge Time(after full discharge): 12 h
Insulation Class: Ⅰ
LED Driver: Over voltage protection/short circuit protection
Weight:2Kg
Size:337*310*76mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals:3*1.0-4mm²(L+N+PE)
Available cable outer diameter:φ7-φ14(mm)
Cable Entries:1XNPT 3/4” (M20*1.5, M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP54
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant


Ordering Information:

P/N	Operating Voltage(V)	Light Color	Exit Sign Designation	Temp. Classification
Ex-KPSEW-GE-ON-*-E	100-277 AC (141-392 DC)	White		T6
Ex-KPSEW-GHL-ON-*-E
Ex-KPSEW-GHR-ON-*-E
Ex-KPSEW-GHLR-ON-*-E
Ex-KPSEG-E-ON-*-E		Green
Ex-KPSEG-HL-ON-*-E
Ex-KPSEG-HR-ON-*-E
Ex-KPSEG-HLR-ON-*-E

Remarks:
1. *Stands for junction box ,including J2AL,J2AR,J2AU,J2B,J2C,J2EL,J2ER.
